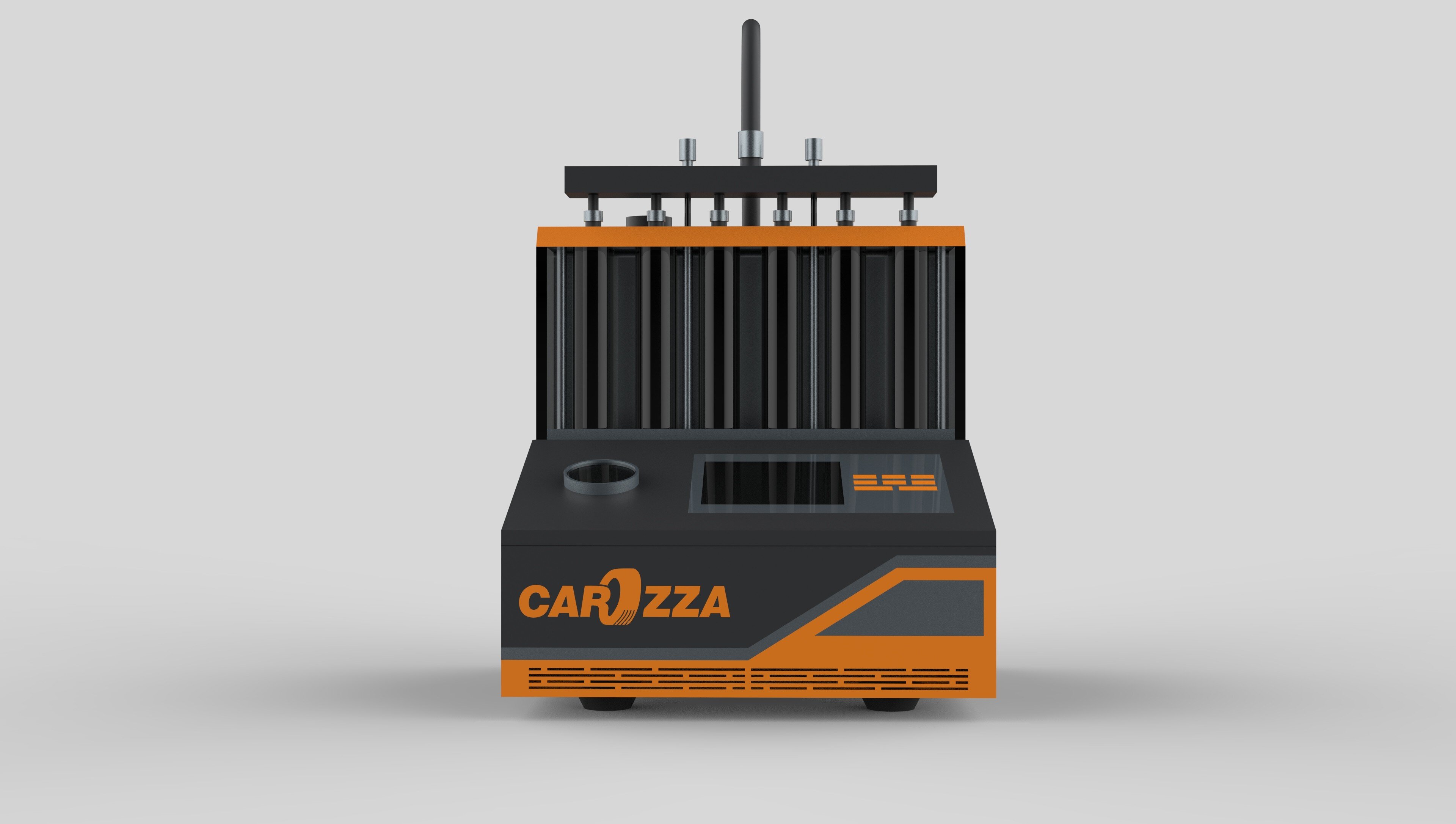

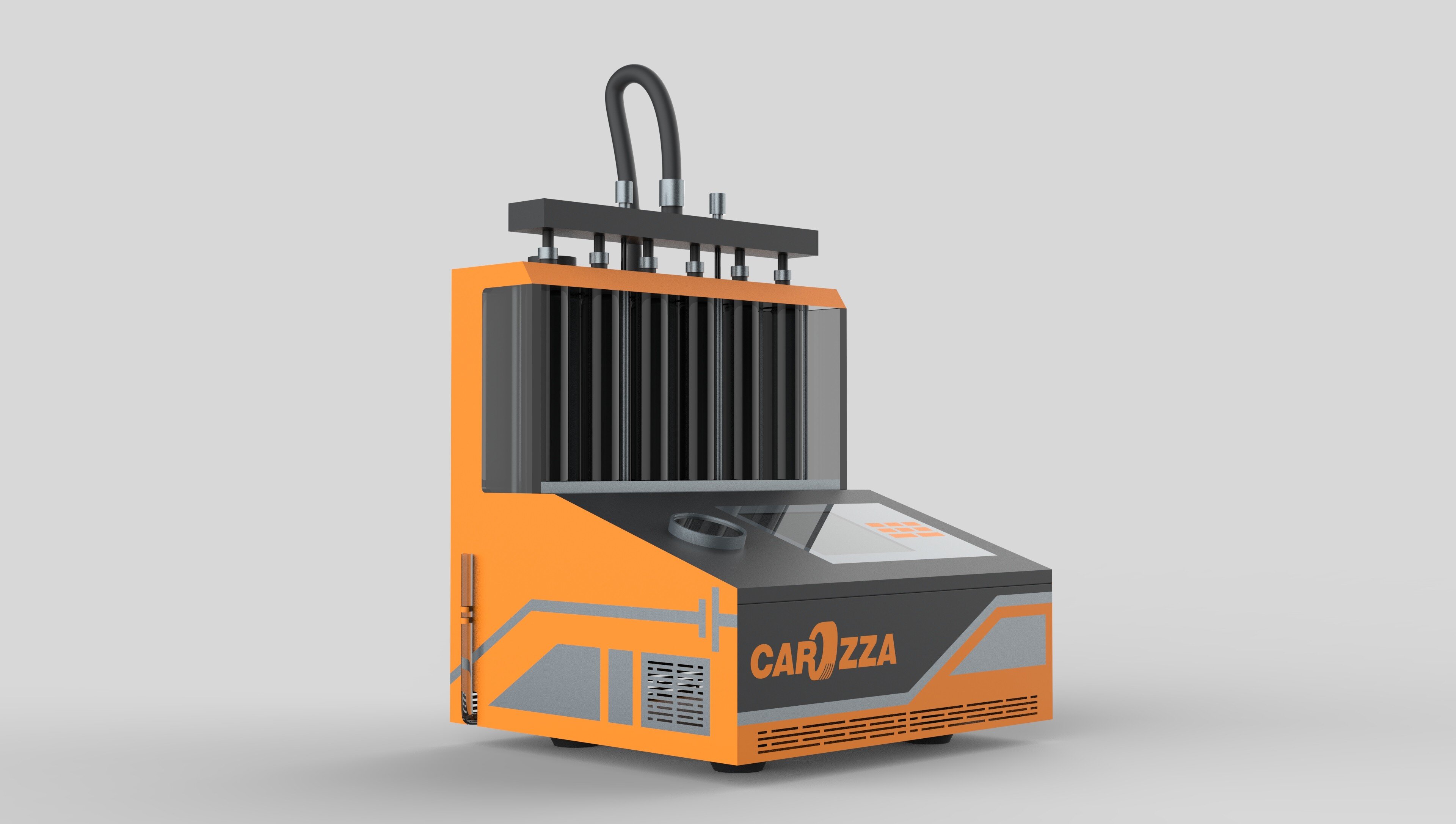

Automotive  Clean and Test  Injectors

The injector cleaning machine can quickly remove the colloid and carbon deposits on the injector, intake valve, piston ring, combustion chamber and other parts, restore engine horsepower and save gasoline consumption. It can improve the performance of gasoline, reduce fuel consumption, eliminate faults such as weak climbing and sluggish acceleration, and improve acceleration performance and restore power.

Supports cleaning and testing of GDl, EFl, and SFl fuel injectors
-Utilizes microcomputer automatic control technology for automatic control of the cleaning and testing process,and real-time monitoring of the key performance of the fuel injectors
-Utilizes ultrasonic intensive cleaning technology to thoroughly remove carbon deposits and filter screen residues from the fuel injectors
-Equipped with various non-dismantle cleaning connectors, capable of non-dismantle cleaning and maintenance for multiple vehicle models
-Through simulating engine operating conditions,comprehensively tests various aspects of the fuel injector's performance

Functions

What Can Be Solved in Your Shop

Suitable for different occasions and functions, Injector Cleaner and Tester is a classic device for SmartSafe cleaning and maintenance.

Functions

1.Working Mode Selection

Can select GDI or EFI working mode based on the injector type

2.Ultrasonic Cleaning

Capable of simultaneously ultrasonic cleaning multiple injectors, effectively removing carbon buildup

3.Uniformity/Spray Testing

Detects the uniformity of fuel injection quantity for each injector and allows comprehensive

observation of the injector spray pattern using background lighting

4.Sealing Test

Tests the sealing and leakage of injectors under system pressure

5.Fuel Injection Quantity Detection

Measures the fuel injection quantity of injectors under a constant 15-second injection condition√

Automatic Cleaning and Testing

Under specific working parameters, realistically simulates injector testing under various conditions

6.Reverse Flush

For the uniformity/spray testing item, performs a reverse flush using a reverse flush adapter to remove

internal injector contaminants and residues attached to the filter screen

7.Non-Dismantle Cleaning

Equipped with various non-dismantle cleaning adapters, allowing non-dismantle cleaning

and maintenance for multiple vehicle models
